Product Description

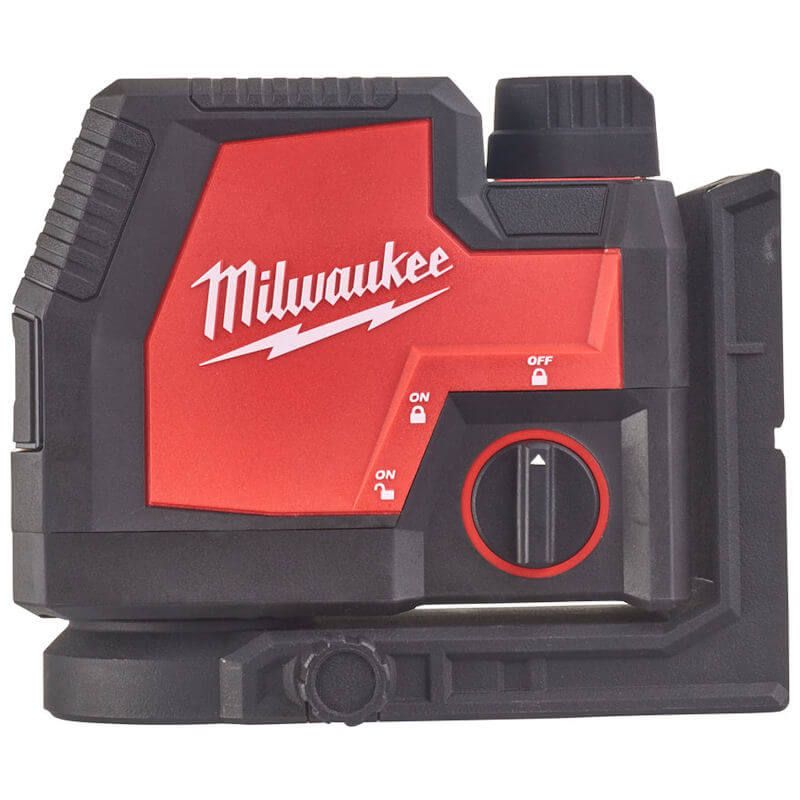

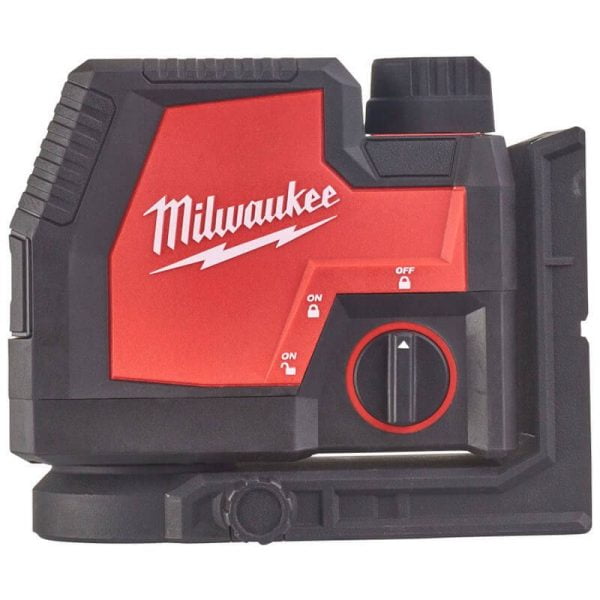

The Milwaukee green laser level with plumb points for floor to ceiling levelling and alignment. This plumb laser level has a rechargeable battery solution for all day runtime. The integrated magnetic bracket features a micro-adjust control that pivots on point, giving you a faster set-up and point to point alignment at long distances. The Milwaukee USB rechargeable green cross line laser with plumb points is the ideal laser level with 50m range when paired with a detector. The Milwaukee L4 CLLP cross line laser with plumb points can be used with Milwaukee laser tripod for more accurate levelling and portability.

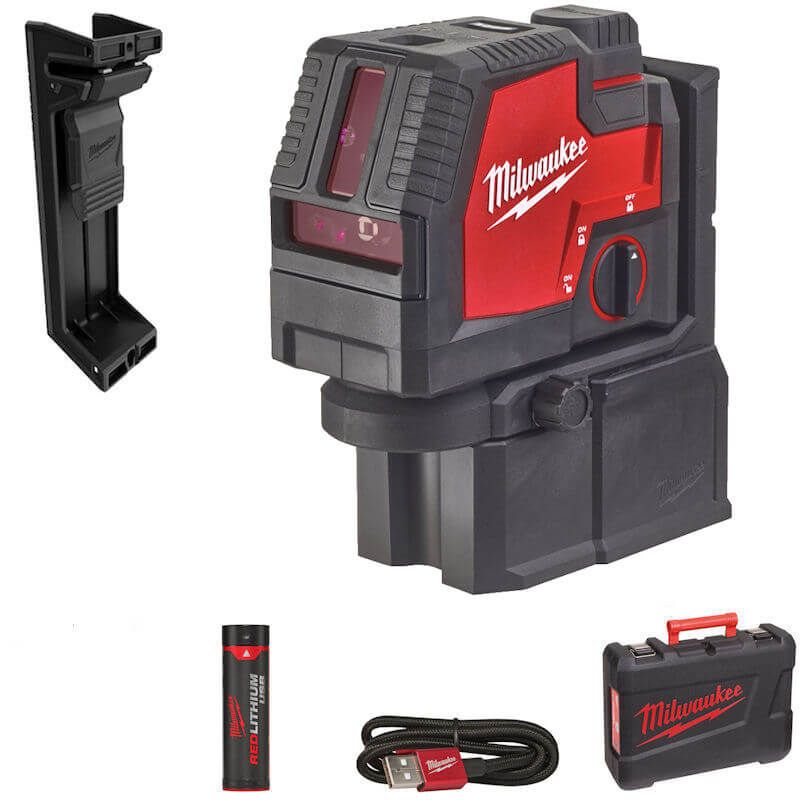

Supplied with : 1x 3.0Ah RedLithium USB battery, USB charging cable & kitbox
- REDLITHIUM™ USB rechargeable green cross line laser with plumb points provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling.
- Built with high intensity green diodes to provide uncompromised visibility – up to 4x better visibility vs red lasers.
- High intensity green beams provide a working range of 30 m and up to 100 m with a detector.
- The rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery provides all day run time of over 8 hours.
- 1x REDLITHIUM™ USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery.
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

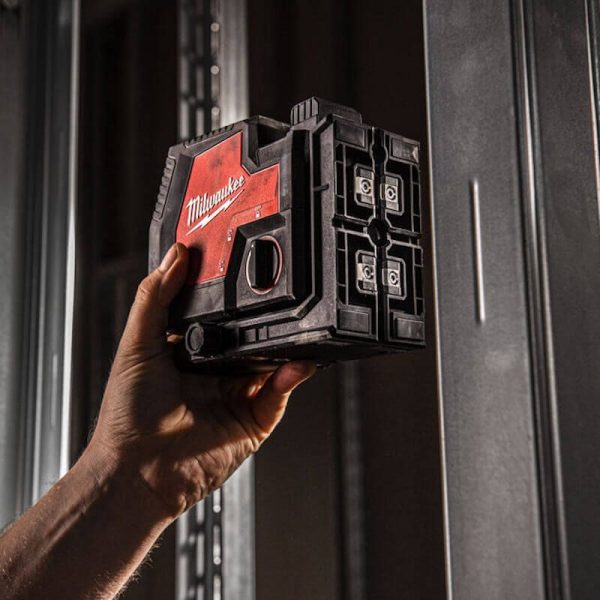

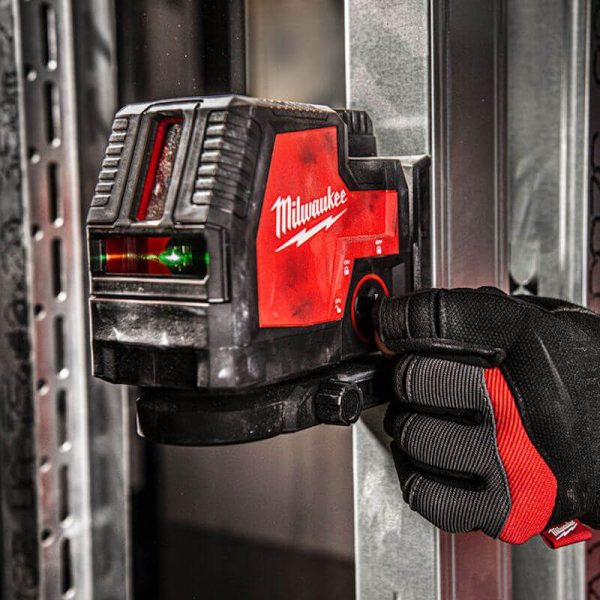

- Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4″ tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod.
- The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.
- Detachable riser included for seeing the plumb point when placed on the ground or over steel track.
- Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.
- Conveniently charge REDLITHIUM™ USB battery internally during use with micro-USB cable from USB power source or AC outlet.
- Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge.
- Laser colour : Green
- Run time (with L4B3) : 8+ hours
- Range : 30 m (50 m with detector)
- Protection class : IP 54
- Drop resistance : 1 m
- Accuracy : +/- 3.0 mm / 10 m
- USB charging : Yes
-
- Specification
- Accuracy : +/- 0.3 mm / 10 m
Battery compatibility : REDLITHIUM™ USB
Battery pack capacity : 3.0 Ah
Battery type : Li-ion
Charger supplied : 130 min
Colour of laser line : Green
Colour of plumb points : Green
Compatible laser detector : LLD50 (not included)
Fan angle : Vertical line > 120° / horizontal line > 120°
Laser clasification : Class 2

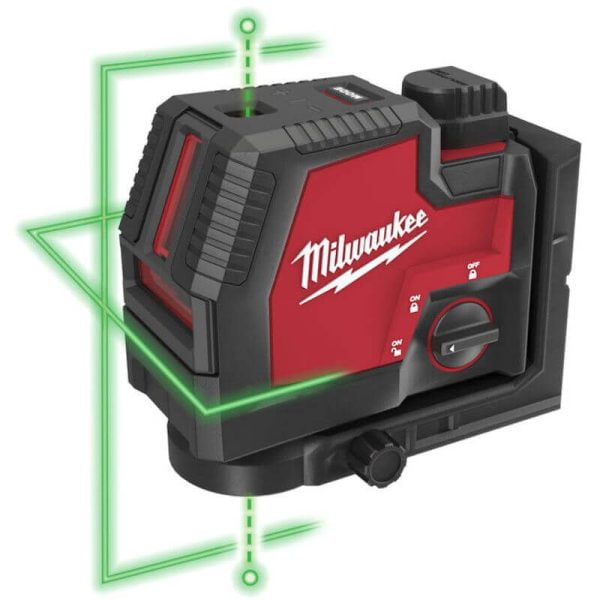

Laser projection : 1x vertical, 1x horizontal, cross line, 2x plumb points
Max. run time (with L4B3 battery) : 8 hours
No. of batteries supplied : 1
Protection class : IP 54
Self levelling range : +/- 4.0°
Self levelling time : < 3 secs
Supplied in : Kitbox
Tripod mount : 1/4″ thread (tripod not included)
Voltage : 4 volt
Weight (with battery pack) : 1.0 kg
Working range (detector) : 50 m
Working range (visible) : 30 m
